Inconel / Incoloy Round Bars

A nickel alloy round bar is a solid cylindrical superalloy bar supplied to defined material, dimensional, condition and quality requirements. It helps to think about a purchase like this in five stages: first the extreme service requirement the part has to survive, then the material and governing standard that satisfy it, then the production route used to make it, then the exact geometry and condition needed, and finally the testing and documentation that prove all of that was actually delivered.

What Are Inconel and Incoloy Round Bars?

An Inconel or Incoloy round bar is a solid cylindrical nickel-based superalloy product, and its complete specification can include its grade, product standard, diameter, length, manufacturing route, tolerance, surface finish, metallurgical condition and required documentation. The product specification, in practice, is the complete set of technical and commercial requirements that determines what a supplier is expected to deliver.

Nine things typically define the product. The grade establishes the material identity. The product standard identifies the governing specification. Diameter sets the intended cross-sectional size, and length determines how the bar is prepared and handled. The manufacturing route can affect dimensional and surface characteristics. Tolerance defines the acceptable dimensional deviation. Surface finish affects machining—which is notoriously difficult and tool-heavy with superalloys. Material condition dictates the mechanical properties. And testing or documentation supports conformity and acceptance.

Consider a request for an Inconel 625 round bar, 50 mm. That identifies the grade and nominal diameter, but it doesn’t tell the supplier which product standard governs, what length is required, what tolerance is acceptable, what surface finish is needed, what heat-treatment condition is required, or what certification and testing is expected.

Before sending an enquiry, define the application, record the required grade, identify the product standard, note diameter and length, define any critical tolerance or finish, state the required heat-treatment condition, state the required testing and documentation, and confirm quantity and destination.

The most common mistake is treating grade plus diameter as a complete specification. Important supply requirements get left undefined that way, so it helps to complete the relevant fields rather than assume a 50 mm bar from one supplier matches a 50 mm bar from another (tolerance and heat-treatment condition can differ significantly). It also helps to resist copying a supplier’s entire specification table into an RFQ. Not every field they list will be relevant to your part, so specify only what actually affects the product you need.

What Inconel and Incoloy Round Bar Grades and Families Are Available?

Inconel and Incoloy round bars belong to the broader family of nickel-based superalloys, but they are optimized for different primary service environments. Broadly speaking, Inconel alloys are nickel-chromium-based and are primarily selected for high-temperature strength and oxidation resistance. Incoloy alloys are nickel-iron-chromium-based and are generally selected for exceptional aqueous corrosion resistance and performance in acidic environments. A grade family, in this context, groups alloys with related base chemistries and broadly related performance characteristics.

Within these families, specific grades solve distinct combinations of thermal and corrosive demands:

• Inconel 600 (UNS N06600): A general-purpose nickel-chromium-iron alloy chosen for its excellent resistance to oxidation and carburization at high temperatures, as well as its mechanical properties at sub-zero temperatures.
• Inconel 601 (UNS N06601): Similar to 600 but with additions of aluminum and titanium. It is specifically selected for applications requiring high metallurgical stability and superior resistance to high-temperature oxidation.
• Inconel 625 (UNS N06625): A solid-solution-strengthened alloy that offers a unique combination of outstanding high-temperature strength, fatigue resistance, and exceptional resistance to chloride pitting and crevice corrosion.
• Inconel 718 (UNS N07718): A precipitation-hardenable alloy designed for exceptionally high yield, tensile, and creep-rupture strength at temperatures up to 700°C (1300°F).

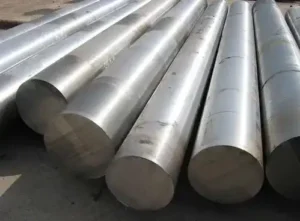

• Incoloy 800 / 800H / 800HT (UNS N08800/N08810/N08811): Iron-nickel-chromium alloys with excellent strength and resistance to carburization and oxidation at high temperatures. The “H” and “HT” variants have controlled grain sizes and heat treatments specifically for improved creep-rupture properties.

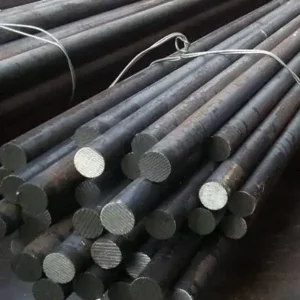

• Incoloy 825 (UNS N08825): An iron-nickel-chromium alloy with additions of molybdenum, copper, and titanium. It is specifically engineered for outstanding resistance to both reducing and oxidizing acids, including sulfuric and phosphoric acids.
• Incoloy 925 (UNS N09925): A precipitation-hardenable nickel-iron-chromium alloy with additions of molybdenum and copper. It combines the high strength of age-hardening with the corrosion resistance required for “sour gas” (H2S) environments in the oil and gas sector.

One assumption is worth being cautious about: the most common grade isn’t automatically the right grade. A familiar grade is only a candidate; the extreme environment determines which requirements actually matter. If you know the application but not the grade, the next section walks through a selection method. If you already know the grade but not the exact product form, skip ahead to the standards and specification sections.

What Does the Application Require From the Inconel or Incoloy Round Bar?

Grade selection should start with the extreme conditions the component actually has to withstand, then narrow the candidates by temperature, environment, fabrication and mechanical requirements. That’s what a service requirement really is: the environmental, thermal, fabrication and mechanical conditions the component must accommodate.

This approach works best when you know the application but aren’t sure of the grade yet. Start with the environment the bar will encounter, since that narrows the corrosion and service candidates fastest. Then consider temperature, which narrows thermal-use candidates, followed by how the part will be machined or formed, which adds fabrication constraints. Add in the strength or creep-resistance the part demands, and by that point you should have a short list of realistic candidates.

Working through it as a series of questions can help. Is extreme heat and oxidation the dominant constraint? If so, narrow by high-temperature Inconels (600, 601) or Incoloy 800-series first. Is aqueous corrosion or acidic exposure the main issue? If so, lean toward Incoloy 825 or Inconel 625. Is exceptional yield strength or fatigue life at elevated temperatures critical? If so, you are likely looking at precipitation-hardenable grades like Inconel 718 or Incoloy 925.

It’s tempting to reach for Inconel 625 as soon as “high performance” comes up, but corrosive service isn’t a single condition. The actual environment, temperature, fabrication method and mechanical duty still determine whether 625 is the right call. Shortcuts like high heat means Inconel or acid means Incoloy can be useful starting points, but they’re not complete material-selection rules on their own.

The distinction worth remembering: you need grade selection when the service requirement is known but the material isn’t. You need specification selection when the material is already decided but the exact product still isn’t.

Which Standards, Designations and Equivalent Grades Apply to Inconel and Incoloy Round Bars?

Nickel alloy round-bar documents can carry several identifiers, and they do different jobs. A grade designation identifies the material, a product standard sets the requirements for the product itself, and dimensional or testing standards govern specific parts of the specification. A product standard, formally, is a technical specification that establishes requirements for a defined class of products.

The same grade can appear under several designation systems depending on which document you’re reading:

The relevant product standards also do different jobs. Here’s a quick reference for what each one covers regarding the grades available:

Seeing B166, B446 and B637 referenced together, it’s easy to assume they’re interchangeable. They aren’t. B166 addresses solid-solution Ni-Cr-Fe alloys. B446 addresses solid-solution Ni-Cr-Mo-Nb alloys. B637 specifically addresses precipitation-hardening alloys and governs the complex heat-treatment requirements needed to develop their strength. The lesson isn’t to memorize the numbers; it’s to identify which requirement each standard is actually performing.

Before sending an enquiry, identify the material grade, record which designation system each document uses, identify the governing product standard, note any dimensional standard, identify the required testing standard, and verify that any equivalent grade mapping is actually accurate. A few mistakes are worth avoiding: treating every ASTM reference as if it were the material standard, when some govern tests or treatments instead; assuming equivalent grades mean identical specifications; and listing every standard you’ve come across without stating which one actually applies.

What Inconel and Incoloy Round Bar Sizes, Dimensions and Tolerances Should You Specify?

Specify more than the nominal diameter whenever dimensional control actually matters, but keep in mind the economics of superalloys. Dimensional tolerance is simply the permitted variation from a specified dimension. Because nickel alloys are vastly more expensive than stainless or carbon steels, and because they work-harden rapidly and are abrasive to cutting tools, specifying the correct tolerance and manufacturing route upfront can save significant money.

The requirements that can matter go beyond diameter alone: diameter tolerance for machining and fit, length and length tolerance for fixed or cut components, straightness for shafts, and roundness or ovality for precision fits.

The difference this makes in practice is easy to underestimate. 50 mm on its own simply doesn’t communicate the same requirement as 50 mm h9 or 50 mm peeled and turned.

What you actually need to specify depends on the job. General stock usually only needs diameter plus required length. Machining stock heavily benefits from diameter, tolerance and the relevant surface condition (peeled or turned) to minimize the amount of expensive superalloy you have to turn into chips. A precision fit needs diameter, tolerance, straightness and roundness. And if you’re working from an existing drawing, match its dimensional and geometric requirements directly.

Straightness and roundness aren’t needed for every purchase. They matter specifically when geometry affects machining, assembly, rotation, feeding or component performance. Common mistakes here include assuming 50 mm means exactly 50.000 mm; assuming diameter controls everything, when straightness and cross-sectional geometry are separate characteristics; and buying oversized hot-rolled black bar to “be safe,” only to pay premium prices for material that will just be machined away.

How Do Manufacturing and Finishing Processes Change an Inconel or Incoloy Round Bar?

Manufacturing and finishing should be chosen based on the dimensional and surface result the next operation actually needs. Superalloys work-harden rapidly and are abrasive to cutting tools, meaning the manufacturing route is a critical cost and performance factor.

Hot-finished (black) bar is worth investigating only when general stock or massive subsequent machining is planned, and you have the tooling to handle the tough surface scale. Cold-drawn (bright) bar matters when a controlled bright-bar condition, tighter dimensions and a better surface is genuinely required. Peeling removes the outer layer to eliminate surface defects and scale. Turning produces a precise machined outside diameter. Grinding adds further dimensional or surface precision. ASTM standards distinguish these routes and apply different tolerance classes to them.

The practical way to decide: if the bar will undergo substantial machining after delivery, check whether conventional hot-finished material is actually sufficient before paying for more. However, if your machining capacity is limited or you want to reduce tool wear and cycle times, specifying a peeled, turned, or ground bright bar route is often vastly more economical in the long run, even if the per-kilo price of the bar is higher. You are paying the mill to remove the tough outer scale rather than paying your machinists to do it with expensive carbide inserts.

It’s not automatically better to buy the most highly finished bar available. Extra processing doesn’t add functional value if later machining is going to establish the final surface or dimension anyway. The better purchasing decision is the route that satisfies the required result without paying for unnecessary processing, while factoring in the cost of machining the superalloy itself.

How Do Heat Treatment, Surface Condition and Material Properties Affect Inconel and Incoloy Round Bars?

Heat-treatment condition is arguably the most critical variable when buying Inconel and Incoloy round bars, as it directly dictates the mechanical state of applicable grades. Grade, condition and required properties need to be considered together rather than in isolation. Material condition, in this context, means the metallurgical or supplied state of the product, including any relevant heat-treatment or cold-work condition.

The distinction is most obvious in precipitation-hardenable grades like Inconel 718 and Incoloy 925. These alloys can be supplied in a solution annealed (soft, machinable) condition, or they can be supplied age-hardened (precipitation hardened to their maximum strength). If you order Inconel 718 without specifying the condition, you might receive material that is either too soft for your application or too hard for your machinists to cut.

Similarly, for high-temperature grades like Incoloy 800H and 800HT, the specific annealing temperature and resulting grain size are strictly controlled by the ASTM B408 standard to ensure long-term creep-rupture strength. Standard Incoloy 800 does not have these strict grain-size controls and should not be substituted for 800H/HT in high-temperature pressure applications.

The mechanical properties that typically matter are tensile strength, yield strength (crucial for high-stress aerospace or downhole components), elongation, and hardness. Surface finish and chemical passivation are less common for superalloys than for stainless steels, but surface cleanliness is vital to prevent contamination during subsequent welding.

Before finalizing a spec, confirm the required grade and material condition (especially for age-hardening or creep-rated grades), identify the critical mechanical properties, specify surface finish where relevant, and specify whatever tests or documentation apply. A buyer who compares only grade and tensile strength can still miss whether the delivered condition actually suits the component, which is why grade, condition, required property and verification are best treated as one connected chain.

How Are Inconel and Incoloy Round Bars Tested and Verified?

Verification should connect the purchase requirement to the physical bar itself, its identification, and the evidence that supports it. An MTC (material test certificate, typically EN 10204 3.1 or 3.2) is only useful when it actually corresponds to the material supplied and the specification that applies.

Because superalloys are often used in critical, high-liability applications (aerospace, nuclear, high-pressure oil and gas), non-destructive testing (NDT) is frequently required. Ultrasonic Testing (UT) is commonly specified to ensure there are no internal voids, pipes, or inclusions within the bar. Positive Material Identification (PMI) via XRF or OES is also standard practice upon receipt to ensure no mix-ups occurred with cheaper stainless or carbon steels.

Working through verification is really a sequence of checks. Does the certificate grade and UNS number match what was purchased? Can the material identity or heat number be matched to the physical bar? Do the chemistry and mechanical results satisfy the governing ASTM standard? If UT was ordered, is the UT report included and acceptable?

In practice that means matching the purchased grade and governing standard, matching the heat number, checking the required chemistry and mechanical results, verifying any NDT reports, checking dimensions and condition, and confirming traceability. Getting an MTC from a supplier isn’t the end of the process. The document is evidence, not a substitute for matching it to the physical material.

What Inconel and Incoloy Round Bar Applications Require Different Product Choices?

Nickel alloy round bars turn up across highly specialized industries, but the industry label should really only be a starting point. The component’s actual environment, manufacturing process, geometry and mechanical requirements are what determine the real product specification.

In aerospace and gas turbines, the main concern is extreme temperature and fatigue, which usually means paying close attention to precipitation-hardening grades like 718, alongside strict heat-treatment controls and NDT. For oil and gas downhole components, high mechanical loads combined with H2S environments dominate: Incoloy 925 and Inconel 718 are frequent choices. Chemical processing applications are governed by aqueous corrosion and acid exposure, so grades like Incoloy 825 and Inconel 625 are selected for pumps and agitators. Furnace equipment is driven by continuous high-temperature exposure, making Inconel 600, 601, and Incoloy 800/800H standard. And marine applications are driven by chloride pitting, heavily utilizing Inconel 625 for shafts.

Define the actual service environment, operating temperature, downstream manufacturing, dimensional and fit requirements, critical mechanical requirements and testing/documentation needs before selecting a grade from those constraints, rather than the other way around. An industry name like oil and gas or aerospace describes a context, not a complete material requirement on its own.

How Should You Build a Complete Inconel or Incoloy Round Bar Purchase Specification?

Build the specification in dependency order: material identity first, then manufacturing route, then geometry, then surface and condition, and finally evidence and delivery, since each stage depends on the one before it.

Start with the grade, designation and product standard, which establishes what material is actually being asked for. From there, define the manufacturing route (hot finished, cold drawn, peeled, turned, or ground), since that defines the supply route itself. Next comes geometry: diameter, length, tolerance and any geometric controls that matter. Then surface and condition: finish, roughness where relevant, and critical heat-treatment condition, which together define the state the bar is delivered in. Finally, evidence and delivery: testing (UT, PMI), certification, traceability, packaging and destination.

A complete specification would cover all of the above. Inconel 625 round bar, 50 mm on its own leaves almost everything undefined. Inconel 625 (UNS N06625) to ASTM B446, 50mm peeled and turned to h9 tolerance, 3-meter random lengths, solution annealed, with EN 10204 3.1 MTC and UT tested is a complete, unambiguous specification.

If the grade itself is still unknown, go back to the service-constraint approach earlier in this guide. If the grade is known but the product is still incomplete, work through this dependency chain. A longer specification isn’t automatically a better one. The goal isn’t maximum detail; it’s enough relevant detail to remove the ambiguity that actually matters.

How Should You Request an Accurate Inconel and Incoloy Round Bar Quote?

A good RFQ gives the supplier enough material, dimensional, condition, quality and delivery information to quote the intended product without having to make assumptions on your behalf. At minimum, an RFQ needs the grade, designation and governing standard on the material side; diameter, length and quantity on the geometry side; manufacturing route, finish, tolerance and material condition where they apply; certificate, testing and inspection requirements for quality evidence; and packaging and destination requirements.

It helps to compare what an incomplete request looks like against a more useful one. Inconel 718 round bar becomes more useful as grade plus governing standard and condition. 50 mm becomes diameter plus required tolerance and manufacturing route. 10 pieces becomes quantity plus length. Certified material becomes a defined certificate or testing requirement (e.g., 3.1 MTC + UT).

Before sending a request, state the grade, standard, diameter and length, quantity, tolerance and manufacturing route, material condition, certification and testing requirements, and destination.

Ask honestly whether two qualified suppliers could reasonably interpret your RFQ differently. If so, clarify the missing specification before you send it out. A supplier can certainly help identify missing requirements, but critical engineering requirements shouldn’t be left to supplier guesswork by default. Showing the fields a complete RFQ needs, rather than expecting a buyer to remember them from scratch, is really just an application of a basic usability principle: recognition is easier than recall. (Nielsen Norman Group)

How Should Inconel and Incoloy Round Bars Be Packaged, Cut and Prepared for Delivery or Export?

Delivery requirements should cover cut length, product identification, protection, packaging, documentation and destination according to what the actual shipment needs. However, for nickel alloys, packaging and protection are metallurgical requirements, not just logistical ones.

Nickel alloys are highly susceptible to surface contamination from carbon steel (iron pickup), which can lead to localized galvanic corrosion, pitting, or weld defects later in the component’s life. Therefore, Inconel and Incoloy bars must be packaged, stored, and transported strictly separated from carbon steel products. They should be wrapped in protective materials (like PE sleeves or heavy-duty VCI paper) and banded with non-metallic or nickel-compatible straps, never bare carbon steel bands.

Before shipment, state the required length and any length tolerance, define strict surface protection to prevent iron contamination, define bundle or product identification, confirm the required technical documents, confirm packaging, confirm the destination, and maintain traceability through the whole shipment.

Whether fixed or exact length is required determines whether you need to state a tolerance alongside the length, or simply confirm an acceptable supply length. Whether the shipment is international determines whether destination-specific documentation and packaging apply. Leaving cut length until dispatch is a common mistake, since cutting is really a product requirement that belongs at the enquiry stage. Treating packaging as generic is another; standard steel strapping and bare wooden pallets can ruin the surface integrity of a high-value superalloy bar.

Strategic Perspective: What Matters Most When Buying Inconel and Incoloy Round Bars?

The strongest buying decision isn’t simply the lowest price for a familiar grade. It’s the offer that describes the right material, production route, dimensions, condition and evidence for the extreme intended service. Two supplier quotations are technically equivalent only when they describe the same relevant grade, product standard, dimensions, tolerance, heat-treatment condition, testing/documentation and delivery requirements closely enough for their prices to actually be compared meaningfully.

It helps to think of the whole guide as a ladder. Why (what must the component survive) sets the service requirement. What (which material and standard satisfy it) sets the material identity. How (how it should be produced and finished) sets the manufacturing route. Exactly (what dimensions and condition are required) sets the physical specification. And prove it (how conformity will be established) sets the evidence.

A final purchasing diagnostic means covering service (environment, temperature, component duty), material (grade, governing standard), route (manufacturing route, required finish), geometry (diameter, length, critical tolerances), condition (solution annealed vs age hardened), and evidence (testing/certification, traceability requirements), in that order, before price ever enters the conversation.

Before comparing prices, check that both quotations are for the same material, that the same relevant product standard is being applied, that diameter, length and tolerances are equivalent, that manufacturing and material conditions match, that NDT requirements match, and that quantity, destination and delivery requirements are actually comparable.

The lowest price is only the most important factor once the relevant technical scope is comparable. A lower price for a hot-rolled black bar when you needed a peeled bright bar isn’t actually a lower price for the same product; it’s a different product that will cost you more in machining. A lower price for standard Incoloy 800 when you needed the creep-rated 800HT could result in catastrophic failure in a high-temperature furnace.

A grade-and-price mindset asks who can supply Inconel 718 the cheapest. A specification mindset asks whether the quotations are actually for equivalent products in the first place, and the second question is more useful, because a nickel alloy round bar was never fully defined by its trade name alone. The principle worth carrying forward: choose the material from the service requirement, define the product from the material and processing needs, and only compare suppliers once the quoted specifications are technically equivalent.
