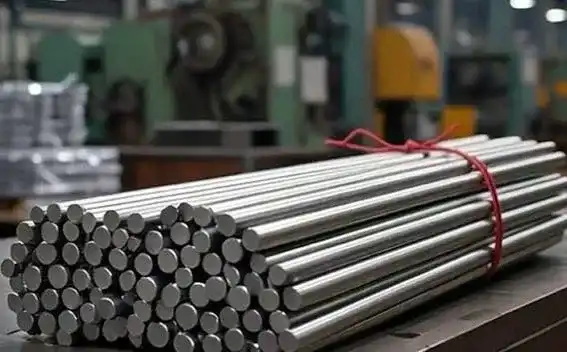

Titanium Grade 5 Round Bar
➡️ Ti-6Al-4V | UNS R56400 | W.Nr. 3.7165
➡️ ASTM, EN, JIS & International Standards
➡️ Supply Conditions
➡️ Multiple Diameters & Supply Lengths
➡️ Global Export & International Delivery
Country of Origin:
Europe, Japan, USA
Material Type:
Titanium
UNS Number:
R56400
Wr. No.:
3.7165
MTC Available:
EN 10204 3.1
Product Description for Titanium Grade 5 Round Bar
Titanium Grade 5 Round Bar is a solid cylindrical bar produced from titanium alloy Ti-6Al-4V, UNS R56400. Bar and billet are supplied to ASTM B348 / B348M, with forgings covered by ASTM B381 and aerospace material typically ordered to AMS 4928. The material number is 3.7165. Grade 5 accounts for more than half of all titanium used worldwide.
The alloy contains 5.50-6.75% aluminium and 3.50-4.50% vanadium. Aluminium stabilises the alpha phase and vanadium stabilises beta, producing a two-phase alpha-beta structure that can be strengthened by heat treatment. In the annealed condition minimum tensile strength is 895 MPa with 828 MPa minimum yield and 10% minimum elongation. Solution treating and ageing raises strength further, typically above 1100 MPa in suitable sections.
At 4.43 g/cm3 it is roughly as strong as quenched and tempered alloy steel at 56% of the density. Corrosion resistance is good in seawater and chlorides, though slightly below the commercially pure grades in strongly oxidising acids. Useful strength is retained to about 400 deg C.
Bar is supplied annealed or solution treated and aged in diameters from about 6 mm to 350 mm and lengths of 3 to 6 m. An extra-low interstitial variant, Grade 23 or Ti-6Al-4V ELI, is used where fracture toughness and cryogenic performance are critical.
Typical applications include aerospace structural components, engine parts, fasteners, landing gear fittings, orthopaedic implants, marine and offshore hardware, motorsport components, downhole tools and high-performance sports equipment.
Common Applications of Titanium Grade 5 Round Bar
➡️ Machined shafts, spindles, valve stems, pump sleeves and pins for food, beverage, dairy and pharmaceutical equipment, where the passive chromium oxide film resists both product acids and caustic clean-in-place chemicals.
➡️ Fasteners, studs, bolts, threaded rod and anchor components produced from bar stock, chosen for corrosion resistance combined with the ductility needed for cold heading and thread rolling.
➡️ Chemical, water treatment and general process plant parts such as agitator shafts, flange blanks, nozzles and support components handling water, steam and mildly corrosive media free of significant chlorides.
➡️ Architectural and structural hardware including handrail stanchions, balustrade fittings, tension rods and bollards, where a bright ground or polished bar finish provides both appearance and low maintenance.
International Equivalent Grade for Ti Gr 5 Round Bar
Standard
Country / Region
Grade
ASTM B348 / B348M
USA
Grade 5 (UNS R56400) - bars and billets
ASME SB348
USA
SB348 Grade 5
ASTM B381
USA
Grade F-5 - forgings
AMS 4928
USA
Ti-6Al-4V bar and billet, annealed
DIN 17860 / DIN 17862
Europe / EU
TiAl6V4 (3.7165)
JIS H4650
Japan
Class 60 (Ti-6Al-4V)
GB/T 2965
China
TC4
ISO 5832-3
International
Ti-6Al-4V alloy for surgical implant applications
Technical Specification for Titanium Grade 5 Round Bar
Specification
Value
Unit
Material
Titanium alloy
-
Grade
Titanium Grade 5 / Ti-6Al-4V / UNS R56400 / 3.7165
-
Product Form
Round bar / rod / billet
-
Standard
ASTM B348 / B348M, ASME SB348 and AMS 4928
-
Diameter
6 - 350 (available range)
mm
Length
3 - 6 (standard random or fixed)
m
Manufacturing Process
Hot rolled, forged, or hot rolled and cold finished
-
Production Route
Double or triple vacuum arc remelting, hot working, annealing or solution treatment and ageing
-
Surface Finish
Hot-finished and pickled, peeled, rough turned, ground, polished
-
Heat Treatment / Delivery Condition
Mill annealed, or solution treated and aged as ordered
-
Mill Annealing Temperature
700 - 790 then air cool (typical)
deg C
Solution Treatment Temperature
900 - 955 followed by water quench (typical)
deg C
Ageing Temperature
480 - 595 for 4 to 8 hours then air cool (typical)
deg C
Beta Transus Temperature
995 (approximate)
deg C
Maximum Continuous Service Temperature
400 (typical)
deg C
Tolerance Standard
ASTM B348 / B348M
-
Density
4.43 (typical)
g/cm3
Melting Range
1604 - 1660 (approximate)
deg C
Thermal Conductivity
6.7 at 20 deg C (typical)
W/m.K
Coefficient of Thermal Expansion
8.6 at 20 - 100 deg C (typical)
micro-m/m.K
Specific Heat
526 at 20 deg C (typical)
J/kg.K
Electrical Resistivity
1.78 (typical)
micro-ohm.m
Modulus of Elasticity
113.8 (typical)
GPa
Magnetic Properties
Non-magnetic
-
Applicable Testing Standard
ASTM E8 / E8M, ASTM E18, ASTM E1409, ASTM E1447, ASTM E2371
-
Certification / Inspection Documents
EN 10204 Type 3.1 or 3.2 mill test certificate
-
Technical Specifications
Get the key technical specifications for Titanium Grade 5 Round Bar
Titanium Grade 5 Round Bar is supplied to ASTM B348 / B348M, adopted by ASME as SB348 for pressure applications, with forgings under ASTM B381 as Grade F-5. Aerospace material is normally ordered to AMS 4928, which adds requirements for melting practice, macrostructure, microstructure and ultrasonic inspection. Surgical implant material follows ISO 5832-3 or ASTM F136.
Unlike the commercially pure grades, Ti-6Al-4V is an alpha-beta alloy and can be strengthened by heat treatment. Mill annealing at 700-790 deg C followed by air cooling is the standard supply condition and gives the values quoted in ASTM B348. Solution treatment at 900-955 deg C followed by a water quench and ageing at 480-595 deg C raises strength well above the annealed level, though hardenability limits the useful depth to sections of roughly 25-40 mm.
The beta transus is approximately 995 deg C. Working or heat treating above this temperature transforms the structure entirely to beta and, on cooling, produces a coarse lamellar structure with higher fracture toughness and creep strength but lower ductility and fatigue strength.
Machining is difficult. Thermal conductivity is only 6.7 W/m.K, so heat concentrates at the cutting edge. Rigid setups, sharp tooling, low speeds, heavy positive feeds and flood coolant are essential.
Welding by GTAW, plasma or electron beam requires full inert gas shielding, and post-weld stress relief is normally applied.
Chemical Composition for Titanium Grade 5 Round Bar
Element
Symbol
Min
Max
Unit
Aluminium
Al
5.50
6.75
%
Vanadium
V
3.50
4.50
%
Nitrogen
N
-
0.05
%
Carbon
C
-
0.08
%
Hydrogen
H
-
0.015
%
Iron
Fe
-
0.40
%
Oxygen
O
-
0.20
%
Residual elements, each
-
-
0.10
%
Residual elements, total
-
-
0.40
%
Titanium
Ti
Balance
Balance
%
Chemical Composition
View the chemical composition and applicable material limits for Ti Gr 5 Round Bar
Aluminium at 5.50-6.75% is an alpha stabiliser. It dissolves in the hexagonal alpha phase and strengthens it by solid solution, raises the beta transus temperature and reduces density. The 6% level is close to the practical maximum, since higher aluminium promotes formation of the brittle ordered Ti3Al alpha-2 phase during prolonged exposure at elevated temperature.
Vanadium at 3.50-4.50% is a beta stabiliser. It lowers the beta transus and retains a proportion of body-centred cubic beta phase at room temperature, typically 5-10% in the annealed condition. The presence of two phases is what makes the alloy heat treatable, since solution treatment and ageing controls the amount, size and distribution of the transformed beta.
Oxygen at 0.20% maximum is an interstitial strengthener, held lower than in Grade 4 because the aluminium and vanadium already supply the required strength and excess oxygen would reduce fracture toughness. In the extra-low interstitial variant, Grade 23, oxygen is capped at 0.13% specifically to improve toughness and cryogenic performance.
The 0.40% maximum on iron is there despite iron being a beta stabiliser, because it segregates during solidification and can form beta-flecks, local regions of odd composition that hurt fatigue performance.
The 0.015% ceiling on hydrogen is there because titanium hydride platelets cause delayed brittle failure. Nitrogen and carbon are limited as embrittling residuals, and other residuals are held to 0.10% each and 0.40% in total.
Mechanical Properties for Titanium Grade 5 Round Bar
Mechanical Property
Value
Unit
Tensile Strength
895 (minimum, annealed)
MPa
Yield Strength 0.2% Offset
828 (minimum, annealed)
MPa
Elongation in 4D or 50 mm
10 (minimum, annealed)
%
Reduction of Area
25 (minimum, annealed)
%
Hardness
Not specified by ASTM B348
HBW
Tensile Strength (solution treated and aged)
1100 (typical, section dependent)
MPa
Yield Strength 0.2% Offset (solution treated and aged)
1000 (typical, section dependent)
MPa
Impact / Charpy V-Notch
Not required by ASTM B348 unless specified
J
Modulus of Elasticity
113.8 (typical)
GPa
Mechanical Properties
Check the key mechanical properties and performance requirements of Ti Gr 5 Round Bar
The values listed for the annealed condition are the requirements of ASTM B348 / B348M for Titanium Grade 5 bar: minimum tensile strength 895 MPa, minimum 0.2% offset yield strength 828 MPa and minimum elongation 10% in 50 mm. Reduction of area of 25% is also a mandatory minimum. Testing follows ASTM E8 / E8M, and B348 sets no hardness requirement for this grade.
Unlike the commercially pure grades, Ti-6Al-4V responds to heat treatment. Solution treating at 900-955 deg C with a water quench, followed by ageing at 480-595 deg C, typically produces tensile strengths around 1100 MPa with yield near 1000 MPa. The effect is limited by hardenability, however, and in sections much above 25-40 mm the interior does not fully respond, so most heavy bar is supplied mill annealed.
Two microstructural cautions apply. Working or heat treating above the beta transus of approximately 995 deg C produces a coarse lamellar structure with better fracture toughness and creep resistance but reduced ductility and fatigue strength. Prolonged exposure above roughly 400 deg C can precipitate the brittle Ti3Al alpha-2 phase.
Where fracture toughness or cryogenic performance governs, Grade 23 (Ti-6Al-4V ELI) with oxygen limited to 0.13% should be specified instead.
Dimension / Sizes for Titanium Grade 5 Round Bar
Dimension / Size
Value
Unit
Diameter (available range)
6 - 350
mm
Standard Length
3 - 6
m
Custom Length
Cut to length on request
-
Diameter Tolerance
Per ASTM B348 / B348M
-
Length Tolerance
Per ASTM B348 / B348M or as agreed
-
Straightness Tolerance
Per ASTM B348 / B348M or as agreed
-
End Condition
Square cut, saw cut, chamfered or as ordered
-
Surface Finish
Hot-finished and pickled, peeled, rough turned, ground, polished
-
Cut-to-Length Availability
Available
-
Dimensional Standard
ASTM B348 / B348M
-
Dimensions & Sizes
Explore available diameters, lengths, and dimensional requirements for Ti Gr 5 Round Bar
Pricing for Titanium Grade 5 Round Bar
Round Bar Prices are generally quoted per kilograms or meters tonnes and can fluctuate with the global raw material and market prices. The final price will depend on a variety of factors, including the grade size, diameter, length, surface finish, the quantity and whether the bars are cut to length or in standard lengths.
For smaller quantities, we can also quote per metre or per piece basis once the required dimensions have been confirmed. Container-loads or orders that are larger in size are typically priced per tonne, based upon the specifications required and the supply conditions.
Please provide your desired dimensions, grades, length number, and end for a current quote including the lead time applicable and details for certification.
Pricing
Get current Titanium Grade 5 Round Bar pricing based on size, quantity, grade, finish, and delivery requirements.
Why Choose Us
Euro Steel Bars is an international distributor, stockist and exporter of stainless round steel bars that cover carbon, stainless alloy, special grades. We stock a variety of sizes and grades. We guarantee every order with mill test certificates as well as full quality-assurance documentation. Our name speaks to our roots: European-sourced materials that is backed by the certificates and rigor that buyers from Asia as well as the Gulf and Africa are looking for.
Each bar we deliver is accompanied by EN 10204 3.1 mill test certificates as well as complete documentation of quality, so what you receive corresponds to what’s written in the documents. We carry a selection of sizes and grades ready for transport, and cut length upon the request of customers, which results in quicker lead times, whether you’re ordering just a one-off spec or a complete project tonnage.
We operate an actual wholesale business that is that is supported with an internationally-operated supply chain therefore we are able to serve fabricators sourcing one grade the same way in the same way as an EPC contractor who is placing a large order. Our clients include manufacturers, fabricators EPC construction companies, engineers oil and gas projects as well as construction companies. we design our inventory as well as documentation to show what buyers need to bring projects forward.
Our customers trust us across Qatar, Oman, Bahrain, Kuwait, Jordan, Malaysia, Singapore, Thailand, Taiwan, Turkey, Italy and South Africa. If you’re looking to source an Gulf energy project, or a construction project within Southeast Asia, you get the same quality of certified material, the exact documentation, and the exact delivery procedure.
Frequently Asked Questions
What is Titanium Grade 5 Round Bar?
What standard does Titanium Grade 5 Round Bar comply with?
What are the key mechanical properties of Ti-6Al-4V?
Can Titanium Grade 5 be heat treated?
What is the difference between Grade 5 and Grade 23?
Why is Ti-6Al-4V difficult to machine?
Can Titanium Grade 5 be welded?
What sizes and finishes are available?
