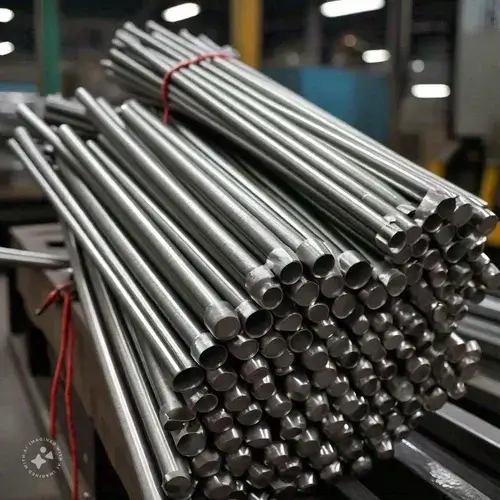

Titanium Grade 9 Round Bar
➡️ Ti-3Al-2.5V | UNS R56320 | W.Nr. 3.7195
➡️ ASTM, EN, JIS & International Standards
➡️ Supply Conditions
➡️ Multiple Diameters & Supply Lengths
➡️ Global Export & International Delivery
Country of Origin:
Europe, Japan, USA
Material Type:
Titanium
UNS Number:
R56320
Wr. No.:
3.7195
MTC Available:
EN 10204 3.1
Product Description for Titanium Grade 9 Round Bar
Titanium Grade 9 Round Bar is made from Ti-3Al-2.5V, a near-alpha alloy with UNS number R56320 and German material number 3.7195. Bars are supplied to ASTM B348, with ASME SB348 for pressure use and AMS specifications for aerospace orders.
With about 3% aluminium and 2.5% vanadium, Grade 9 carries roughly half the alloy content of Grade 5. It is about 80% stronger than Grade 2 in tensile strength, yet it can still be cold formed and welded far more easily than Grade 5.
Corrosion resistance is close to commercially pure titanium, including excellent resistance to seawater and oxidising chlorides. Bars are supplied annealed, and can be turned, ground or polished. The alloy is non-magnetic. Most Grade 9 is made as seamless tube for aircraft hydraulic lines, bicycle frames and sports equipment, where its formability matters. Round bar is used for fittings, connectors, fasteners and machined parts that must match Grade 9 tube in the same assembly, so welds and threads join like with like. It is also used where Grade 2 is too weak but Grade 5 is hard to form or weld. The palladium-bearing version, Grade 18, is available for more corrosive service. Sports equipment makers use it for bicycle parts, golf club parts and tennis racquet frames. Marine and medical makers use bar for fittings, shafts and instrument parts that need more strength than Grade 2 without the forming limits of Grade 5. Bars are also used for high-strength fasteners in marine hardware. Cut pieces are available. Bright bar is stocked.
Common Applications of Titanium Grade 9 Round Bar
➡️ Machined shafts, spindles, valve stems, pump sleeves and pins for food, beverage, dairy and pharmaceutical equipment, where the passive chromium oxide film resists both product acids and caustic clean-in-place chemicals.
➡️ Fasteners, studs, bolts, threaded rod and anchor components produced from bar stock, chosen for corrosion resistance combined with the ductility needed for cold heading and thread rolling.
➡️ Chemical, water treatment and general process plant parts such as agitator shafts, flange blanks, nozzles and support components handling water, steam and mildly corrosive media free of significant chlorides.
➡️ Architectural and structural hardware including handrail stanchions, balustrade fittings, tension rods and bollards, where a bright ground or polished bar finish provides both appearance and low maintenance.
International Equivalent Grade for Ti Grade 9 Round Bar
Standard
Country / Region
Grade
UNS
USA
UNS R56320
ASTM / AMS
USA
ASTM B348 / Grade 9 / AMS 4921 / AMS 4928
EN
Europe
EN 3.7195
GB/T 2965
China
TA18
JIS
Japan
TAP3250 / JIS Class 9
KS
South Korea
KS Class 9 (or Ti-3Al-2.5V)
EN / DIN
Europe
Titan Grade 9 / TiAl3V2.5
GOST
Russia
OT4-1B (or ОТ4-1)
Technical Specification for Titanium Grade 9 Round Bar
Specification
Value
Unit
Material
Titanium
-
Grade
Grade 9 / Ti-3Al-2.5V / R56320
-
Standard
ASTM B348 / ASME SB348
-
Product Form
Round bar
-
Diameter (supply range)
6-300
mm
Length (random)
1-6
m
Manufacturing Process
Hot rolled or forged, then annealed and finished
-
Production Route
VAR (vacuum arc remelting) or EB / plasma cold hearth melting
-
Surface Finish
Descaled, turned, ground or polished
-
Heat Treatment / Delivery Condition
Annealed
-
Tolerance Standard
Per ASTM B348 tolerance tables or as agreed
-
Density
4.48
g/cm³
Thermal Conductivity at 20°C
8.3
W/m·K
Coefficient of Thermal Expansion 20-100°C
9.6
µm/m·K
Modulus of Elasticity at 20°C
100
GPa
Magnetic Properties
Non-magnetic
-
Testing / Inspection
Chemical analysis incl. interstitials, tensile, dimensional, UT on request
-
Certification
EN 10204 3.1 mill test certificate
-
Technical Specifications
Get the key technical specifications for Titanium Grade 9 Round Bar
Titanium Grade 9 Round Bar is ordered as UNS R56320 to ASTM B348 in the annealed condition.
Annealing is done at about 650-790°C. Standard tests are heat analysis with interstitials, tensile tests and dimensional checks. Physical data are reference values: density about 4.48 g/cm³ and modulus about 100 GPa.
ASTM B348 covers Grade 9 bar in the annealed condition, and ASME SB348 applies to pressure parts. Aerospace users often order Ti-3Al-2.5V to AMS specifications, which set tighter limits on microstructure, texture and testing, particularly for hydraulic tube and matching fittings. When bar is machined into hydraulic fittings, check whether the aerospace fitting standard calls for a specific AMS document. Bar can also be ordered cold worked and stress relieved for higher strength, but the order must state this condition and the required properties, because they are not the same as annealed values.
Grade 9 size tolerances come from the ASTM B348 tables. Ground bar can be supplied to tighter limits for fittings. For aerospace hydraulic fittings, check which AMS document the fitting drawing names, and order the bar to that document so tube and fitting are covered by the same control.
Chemical Composition for Titanium Grade 9 Round Bar
Element
Symbol
Min
Max
Unit
Nitrogen
N
-
0.03
%
Carbon
C
-
0.08
%
Hydrogen
H
-
0.015
%
Iron
Fe
-
0.25
%
Oxygen
O
-
0.15
%
Aluminium
Al
2.5
3.5
%
Vanadium
V
2.0
3.0
%
Residuals each
-
-
0.1
%
Residuals total
-
-
0.4
%
Titanium
Ti
Balance
-
%
Chemical Composition
View the chemical composition and applicable material limits for Ti Grade 9 Round Bar
The table shows the ASTM B348 limits for Grade 9. Vanadium at 2.0-3.0% is a beta stabiliser. It adds a small amount of beta phase to the mainly alpha structure, which improves strength and hot workability without making the alloy hard to weld. Aluminium at 2.5-3.5% strengthens the alpha phase. Together, they give about half the alloy content of Grade 5, which is why Grade 9 sits between CP titanium and Grade 5 in strength and formability. Oxygen is limited to 0.15%, lower than in Grade 2, because the alloying elements already provide strength and extra oxygen would reduce ductility. Iron is held at 0.25% maximum. Hydrogen at 0.015% maximum protects against hydride embrittlement.
Each other residual in Grade 9 is capped at 0.1%, with 0.4% for all of them together. Nitrogen and carbon are limited to 0.03% and 0.08%.
Vanadium is checked on every heat. A handheld XRF check on received bar can show both aluminium and vanadium, which quickly separates Grade 9 from commercially pure titanium and from Grade 5. Keep Grade 9 stock separate from Grade 5.
Mechanical Properties for Titanium Grade 9 Round Bar
Mechanical Property
Value
Unit
Tensile Strength (ASTM B348)
≥ 620
MPa
Yield Strength 0.2% (ASTM B348)
≥ 483
MPa
Elongation (ASTM B348)
≥ 15
%
Reduction of Area (ASTM B348)
≥ 25
%
Mechanical Properties
Check the key mechanical properties and performance requirements of Ti Grade 9 Round Bar
The table lists ASTM B348 minimums for annealed Grade 9 bar. ASTM B348 requires annealed Grade 9 bar to reach tensile strength of at least 620 MPa, yield strength of at least 483 MPa, elongation of at least 15% and reduction of area of at least 25%. This is roughly 80% stronger than Grade 2 while keeping good ductility. Cold-worked and stress-relieved material reaches much higher strength and is used for hydraulic tube, but that condition must be ordered specifically. Grade 9 keeps good toughness at low temperature and good fatigue strength. At high temperature, its strength falls faster than Grade 5, so it is not chosen for hot engine parts.
For machined fittings, the annealed condition gives the best balance of strength and machinability. Surface finish and thread form strongly affect fatigue life in hydraulic fittings, so rolled threads are often specified.
Welded parts should be tested in the as-welded state, because the weld zone has a slightly different structure from the bar. The modulus of about 100 GPa, lower than steel, should be allowed for in stiffness calculations.
Dimension / Sizes for Titanium Grade 9 Round Bar
Dimension / Size
Value
Unit
Available Diameter Range (supply capability)
6-300
mm
Standard Length (random)
1-6
m
Custom / Cut-to-Length
Available on request
-
Diameter Tolerance
Per ASTM B348 tolerance tables or as agreed
-
Length Tolerance
Per ordered standard or as agreed (commonly +50 / -0 mm for cut lengths)
-
Straightness Tolerance
Per ASTM B348 or as agreed
-
End Condition
Saw cut square, chamfered or as ordered
-
Surface Finish
Descaled, sandblasted, pickled, rough turned, turned, centreless ground or polished
-
Dimensions & Sizes
Explore available diameters, lengths, and dimensional requirements for Ti Grade 9 Round Bar
Pricing for Titanium Grade 9 Round Bar
Round Bar Prices are generally quoted per kilograms or meters tonnes and can fluctuate with the global raw material and market prices. The final price will depend on a variety of factors, including the grade size, diameter, length, surface finish, the quantity and whether the bars are cut to length or in standard lengths.
For smaller quantities, we can also quote per metre or per piece basis once the required dimensions have been confirmed. Container-loads or orders that are larger in size are typically priced per tonne, based upon the specifications required and the supply conditions.
Please provide your desired dimensions, grades, length number, and end for a current quote including the lead time applicable and details for certification.
Pricing
Get current Titanium Grade 9 Round Bar pricing based on size, quantity, grade, finish, and delivery requirements.
Why Choose Us
Euro Steel Bars is an international distributor, stockist and exporter of stainless round steel bars that cover carbon, stainless alloy, special grades. We stock a variety of sizes and grades. We guarantee every order with mill test certificates as well as full quality-assurance documentation. Our name speaks to our roots: European-sourced materials that is backed by the certificates and rigor that buyers from Asia as well as the Gulf and Africa are looking for.
Each bar we deliver is accompanied by EN 10204 3.1 mill test certificates as well as complete documentation of quality, so what you receive corresponds to what’s written in the documents. We carry a selection of sizes and grades ready for transport, and cut length upon the request of customers, which results in quicker lead times, whether you’re ordering just a one-off spec or a complete project tonnage.
We operate an actual wholesale business that is that is supported with an internationally-operated supply chain therefore we are able to serve fabricators sourcing one grade the same way in the same way as an EPC contractor who is placing a large order. Our clients include manufacturers, fabricators EPC construction companies, engineers oil and gas projects as well as construction companies. we design our inventory as well as documentation to show what buyers need to bring projects forward.
Our customers trust us across Qatar, Oman, Bahrain, Kuwait, Jordan, Malaysia, Singapore, Thailand, Taiwan, Turkey, Italy and South Africa. If you’re looking to source an Gulf energy project, or a construction project within Southeast Asia, you get the same quality of certified material, the exact documentation, and the exact delivery procedure.
Frequently Asked Questions
Should I choose Titanium Grade 9 or Grade 5?
Why is Titanium Grade 9 called half-6-4?
Is Grade 9 used for aircraft hydraulic lines?
What is the difference between Grade 9 and Grade 18?
How is Titanium Grade 9 welded and machined?
What are the limits of Titanium Grade 9?
