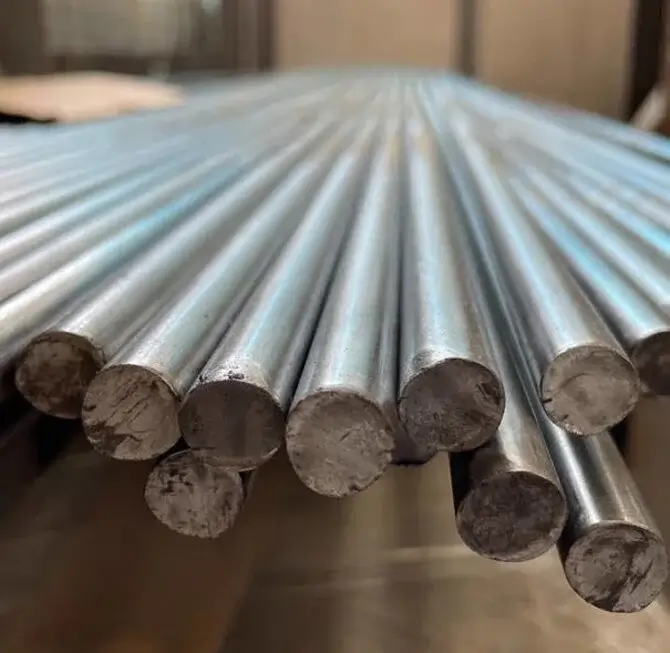

Titanium Grade 8 Round Bar
➡️ Ti Grade 8 | UNS R54810 | EN 3.7185 | AMS 4972
➡️ ASTM, EN, JIS & International Standards
➡️ Supply Conditions
➡️ Multiple Diameters & Supply Lengths
➡️ Global Export & International Delivery
Country of Origin:
Europe, Japan, USA
Material Type:
Titanium
UNS Number:
R54810
Wr. No.:
3.7185
MTC Available:
EN 10204 3.1
Product Description for Titanium Grade 8 Round Bar
Titanium Grade 8 Round Bar is a name that still appears in some supplier catalogues, enquiries and older drawings. It is not a grade in the current edition of ASTM B348, the main American standard for titanium bars and billets, so the name alone does not define a material. There is no current ASTM chemistry, UNS number or set of mechanical requirements that can be quoted for it.
This matters because titanium grades differ widely. A commercially pure grade has modest strength and excellent corrosion resistance, while an alloy grade can be more than twice as strong and behave very differently in acids or at high temperature. Two suppliers quoting “Grade 8” may therefore offer two very different bars.
The safe route is to ask the designer or end user which alloy was intended, then order it by UNS number and governing specification, for example ASTM B348 for a current grade or an AMS specification for an aerospace alloy. The nearest current ASTM B348 grades by number are Grade 7 (Ti-0.15Pd) and Grade 9 (Ti-3Al-2.5V).
Once the alloy is confirmed, bars can be supplied annealed or in the specified condition, cut to length, and turned, ground or polished, with a full EN 10204 3.1 certificate. Do not accept a certificate that shows only “Grade 8” without a standard, UNS number and heat analysis. If the enquiry comes from an old drawing, the drawing revision history or the original purchase records often show which alloy was meant, and this should be checked before any quote.
Common Applications of Titanium Grade 8 Round Bar
➡️ Machined shafts, spindles, valve stems, pump sleeves and pins for food, beverage, dairy and pharmaceutical equipment, where the passive chromium oxide film resists both product acids and caustic clean-in-place chemicals.
➡️ Fasteners, studs, bolts, threaded rod and anchor components produced from bar stock, chosen for corrosion resistance combined with the ductility needed for cold heading and thread rolling.
➡️ Chemical, water treatment and general process plant parts such as agitator shafts, flange blanks, nozzles and support components handling water, steam and mildly corrosive media free of significant chlorides.
➡️ Architectural and structural hardware including handrail stanchions, balustrade fittings, tension rods and bollards, where a bright ground or polished bar finish provides both appearance and low maintenance.
International Equivalent Grade for Ti Grade 8 Round Bar
Standard
Country / Region
Grade
UNS
USA
UNS R54810
DIN
Germany
TiAl8Mo1V1
EN
Europe
EN 3.7185
GB/T
China
TA11 (Ti-8Al-1Mo-1V)
KS
South Korea
KS Class 8 / Ti-8Al-1Mo-1V
JIS
Japan
JIS Class 8 / JIS H4600
Technical Specification for Titanium Grade 8 Round Bar
Specification
Value
Unit
Material
Titanium
-
Grade
Grade 8 (not a current ASTM B348 grade)
-
Standard
Confirm with supplier
-
Product Form
Round bar
-
Certification
EN 10204 3.1 with UNS and specification stated
-
Technical Specifications
Get the key technical specifications for Titanium Grade 8 Round Bar
Grade 8 has no specification of its own in the current edition of ASTM B348. The technical table therefore shows only the general supply options for titanium bar, not grade-specific values.
Before ordering, the buyer should write down the confirmed alloy, its UNS number, the governing specification and its edition, the delivery condition, diameter, length, tolerance class and surface finish. For aerospace work, the AMS specification for the confirmed alloy will also set heat treatment, microstructure and ultrasonic testing requirements.
Density, thermal conductivity and other physical values depend on the actual alloy. For example, commercially pure titanium has a density of about 4.51 g/cm³, while beta alloys can exceed 5.0 g/cm³. These values should be taken from the data for the confirmed grade, not from a generic titanium sheet.
Once the alloy is agreed, record the substitution in writing on the drawing or purchase order, so that later inspection teams know which document governs. Inspection should then follow that specification, including ultrasonic testing classes and tolerance tables where they apply. Keep the written record with the part file. Confirm the edition of the standard too.
Chemical Composition for Titanium Grade 8 Round Bar
Element
Symbol
Min
Max
Unit
Composition
-
-
-
Not defined - confirm actual alloy
Chemical Composition
View the chemical composition and applicable material limits for Ti Grade 8 Round Bar
No chemical composition is shown because Grade 8 is not defined in the current ASTM B348. Showing limits for a grade that the standard does not list would risk wrong material being ordered and accepted.
When the alloy is confirmed, its composition comes from the governing specification. For titanium, the certificate must show not only the alloying elements, such as aluminium, vanadium, palladium, molybdenum or nickel, but also the interstitial elements oxygen, nitrogen, carbon and hydrogen. These interstitials strongly affect strength and ductility, and they are tested by laboratory methods such as inert gas fusion rather than handheld XRF.
A handheld XRF check on received bar can quickly show whether key alloying elements are present, which helps confirm that the bar matches the agreed alloy before machining starts.
Where the drawing gives only the grade number, ask for the intended application. Knowing the service medium, temperature and load usually narrows the choice to one or two listed grades, whose chemistry can then be written onto the order. Keep the laboratory reports with the certificate. Reject bars without a heat number.
Mechanical Properties for Titanium Grade 8 Round Bar
Mechanical Property
Value
Unit
Mechanical Properties
Not defined - confirm actual alloy
-
Mechanical Properties
Check the key mechanical properties and performance requirements of Ti Grade 8 Round Bar
No mechanical properties are shown because Grade 8 has no current ASTM B348 requirements. Strength can range from about 240 MPa minimum tensile strength for soft commercially pure grades to over 1000 MPa for heat-treated alloy grades, so no single value would be correct.
Once the alloy is confirmed, the governing specification sets tensile strength, yield strength, elongation, reduction of area and any hardness or fracture toughness limits for the ordered condition and size. For parts that are heat treated after delivery, the specification may also give required properties after a test heat treatment.
The certificate should report the actual test results for the heat and lot supplied. Design engineers should not use generic titanium data for a bar sold only as “Grade 8”.
Where a part is replacing an existing one, a hardness test on the old part can help show whether it was a soft commercially pure grade or a stronger alloy. This is only a guide, and the final choice must come from the designer or end user. Record the decision with the part file. Do not guess from price or colour.
Dimension / Sizes for Titanium Grade 8 Round Bar
Dimension / Size
Value
Unit
Available Diameter Range (supply capability)
Confirm with supplier
mm
Standard Length (random)
1–6
m
Custom / Cut-to-Length
Available on request
-
Diameter Tolerance
Per ASTM B348 tolerance tables or as agreed
-
Length Tolerance
Per ordered standard or as agreed (commonly +50 / -0 mm for cut lengths)
-
Straightness Tolerance
Per ordered specification
-
End Condition
Saw cut square, chamfered or as ordered
-
Surface Finish
Descaled, sandblasted, pickled, rough turned, turned, centreless ground or polished
-
Dimensions & Sizes
Explore available diameters, lengths, and dimensional requirements for Ti Grade 8 Round Bar
Pricing for Titanium Grade 8 Round Bar
Round Bar Prices are generally quoted per kilograms or meters tonnes and can fluctuate with the global raw material and market prices. The final price will depend on a variety of factors, including the grade size, diameter, length, surface finish, the quantity and whether the bars are cut to length or in standard lengths.
For smaller quantities, we can also quote per metre or per piece basis once the required dimensions have been confirmed. Container-loads or orders that are larger in size are typically priced per tonne, based upon the specifications required and the supply conditions.
Please provide your desired dimensions, grades, length number, and end for a current quote including the lead time applicable and details for certification.
Pricing
Get current Titanium Grade 8 Round Bar pricing based on size, quantity, grade, finish, and delivery requirements.
Why Choose Us
Euro Steel Bars is an international distributor, stockist and exporter of stainless round steel bars that cover carbon, stainless alloy, special grades. We stock a variety of sizes and grades. We guarantee every order with mill test certificates as well as full quality-assurance documentation. Our name speaks to our roots: European-sourced materials that is backed by the certificates and rigor that buyers from Asia as well as the Gulf and Africa are looking for.
Each bar we deliver is accompanied by EN 10204 3.1 mill test certificates as well as complete documentation of quality, so what you receive corresponds to what’s written in the documents. We carry a selection of sizes and grades ready for transport, and cut length upon the request of customers, which results in quicker lead times, whether you’re ordering just a one-off spec or a complete project tonnage.
We operate an actual wholesale business that is that is supported with an internationally-operated supply chain therefore we are able to serve fabricators sourcing one grade the same way in the same way as an EPC contractor who is placing a large order. Our clients include manufacturers, fabricators EPC construction companies, engineers oil and gas projects as well as construction companies. we design our inventory as well as documentation to show what buyers need to bring projects forward.
Our customers trust us across Qatar, Oman, Bahrain, Kuwait, Jordan, Malaysia, Singapore, Thailand, Taiwan, Turkey, Italy and South Africa. If you’re looking to source an Gulf energy project, or a construction project within Southeast Asia, you get the same quality of certified material, the exact documentation, and the exact delivery procedure.
Frequently Asked Questions
What is Titanium Grade 8 Round Bar?
Why does the Grade 8 name cause problems when buying titanium bar?
Which titanium grades are usually ordered instead of Grade 8?
What should I write on a purchase order if my drawing says Titanium Grade 8?
How can I check the alloy of a bar sold as Titanium Grade 8?
Can titanium bar be cut to length once the correct grade is confirmed?
