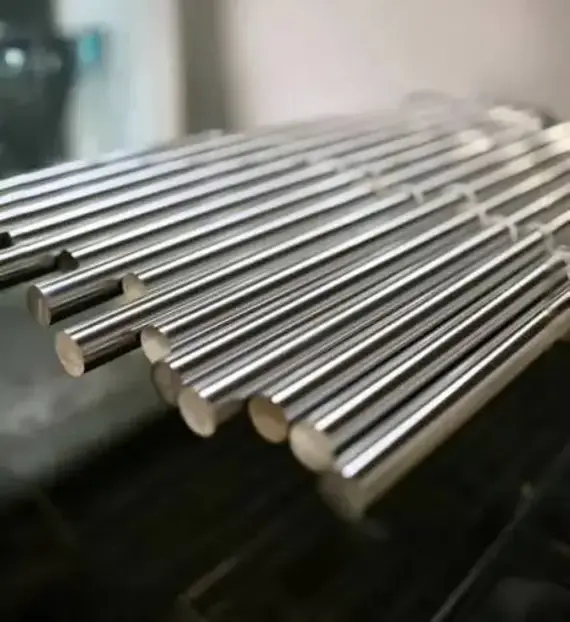

Stainless Steel 410 Round Bar
➡️ SS 410 | UNS S41000 | EN 1.4006
➡️ ASTM, EN, JIS & International Standards
➡️ Supply Conditions
➡️ Multiple Diameters & Supply Lengths
➡️ Global Export & International Delivery
Country of Origin:
Europe, Japan, USA
Material Type:
Stainless Steel
UNS Number:
S41000
Wr. No.:
1.4006
MTC Available:
EN 10204 3.1
Product Description for Stainless Steel 410 Round Bar
Stainless Steel 410 Round Bar is sold as UNS S41000 and W.Nr. 1.4006. The bar standard is ASTM A276 / A276M. Dimensional and surface requirements sit in ASTM A484 / A484M. EN, JIS, GB/T and KS all carry an equivalent designation.
The grade is a basic martensitic stainless steel containing 11.5-13.5% chromium with carbon up to 0.15% under ASTM A276. Unlike austenitic grades it can be hardened by quenching and tempering, reaching 830 MPa minimum tensile strength in ASTM A276 Condition H while retaining useful corrosion resistance in mild atmospheric, steam and fresh water environments. The steel is magnetic in all conditions.
Supply is in the annealed (Condition A) or hardened and tempered condition, in diameters between 3 mm and 500 mm and random lengths of 3 to 6 m; larger diameters are forged and cut lengths are available. Surface options run from hot finished and pickled through cold drawn, peeled and turned to ground and polished. The grade is hardenable by quenching and tempering, and bar is normally machined in the annealed condition before heat treatment.
Fabricators use it for pump and valve shafts, fasteners, turbine parts and hardened machine components across power generation, petrochemical, oil and gas, water treatment and general engineering. An EN 10204 3.1 mill certificate covering heat analysis, mechanical test results and heat treatment condition is the normal documentation. The melting range is roughly 1480 – 1530 C. The bar is ferromagnetic in every condition. Density is around 7.70 g/cm3 and the modulus of elasticity about 200 GPa. Third party inspection, positive material identification and non-destructive examination can be added at order stage.
Common Applications of Stainless Steel 410 Round Bar
➡️ Machined shafts, spindles, valve stems, pump sleeves and pins for food, beverage, dairy and pharmaceutical equipment, where the passive chromium oxide film resists both product acids and caustic clean-in-place chemicals.
➡️ Fasteners, studs, bolts, threaded rod and anchor components produced from bar stock, chosen for corrosion resistance combined with the ductility needed for cold heading and thread rolling.
➡️ Chemical, water treatment and general process plant parts such as agitator shafts, flange blanks, nozzles and support components handling water, steam and mildly corrosive media free of significant chlorides.
➡️ Architectural and structural hardware including handrail stanchions, balustrade fittings, tension rods and bollards, where a bright ground or polished bar finish provides both appearance and low maintenance.
International Equivalent Grade for SS 410 Round Bar
Standard
Country / Region
Grade
ASTM A276 / A276M
USA
Type 410 (UNS S41000)
ASTM A479 / A479M
USA
Type 410 (UNS S41000)
ASME SA-479
USA
Type 410 (UNS S41000)
EN 10088-3
Europe / EU
1.4006 (X12Cr13)
BS EN 10088-3
United Kingdom
1.4006 (X12Cr13)
JIS G4303
Japan
SUS410
GB/T 1220
China
12Cr13 (S41010)
KS D 3706
South Korea
STS410
ISO 15510
International
X12Cr13
Technical Specification for Stainless Steel 410 Round Bar
Specification
Value
Unit
Material
Stainless Steel
-
Grade
410 / UNS S41000 / W.Nr. 1.4006
-
Product Form
Round Bar / Rod
-
Standard
ASTM A276 / A276M and ASTM A479 / A479M
-
Diameter
3 - 500 (larger by forging on request)
mm
Length
3 - 6 (random mill length) or cut to length
m
Manufacturing Process
Hot rolled, forged or cold finished
-
Production Route
EAF + AOD / VOD refining, continuous cast or ingot, hot rolled or forged
-
Surface Finish
Hot-finished and pickled, cold-drawn, peeled, turned, ground or polished
-
Heat Treatment / Delivery Condition
Annealed (condition a) or hardened and tempered
-
Tolerance Standard
ASTM A484 / A484M
-
Carbon Equivalent (CEV)
Not applicable (CEV applies to carbon and low-alloy steels)
-
Density
7.70 (nominal)
g/cm3
Melting Range
1480 - 1530 (typical)
C
Thermal Conductivity at 100 C
24.9 (typical)
W/m.K
Coefficient of Thermal Expansion (0-100 C)
9.9 (typical)
10-6/K
Specific Heat (0-100 C)
460 (typical)
J/kg.K
Electrical Resistivity at 20 C
0.57 (typical)
micro-ohm.m
Modulus of Elasticity at 20 C
200 (typical)
GPa
Magnetic Properties
Ferromagnetic in all conditions
-
Applicable Testing / Inspection Standard
ASTM A370 (mechanical testing), ASTM E18 / E10 (hardness)
-
Certification / Inspection Documents
EN 10204 3.1 mill test certificate standard, 3.2 third-party, PMI, ultrasonic and dye-penetrant examination available on request
-
Technical Specifications
Get the key technical specifications for Stainless Steel 410 Round Bar
ASTM A276 / A276M and ASTM A479 / A479M is the usual ordering specification and ASTM A484 / A484M holds the tolerances. The European designation is 1.4006 (X12Cr13). State the standard, the delivery condition and any supplementary testing when ordering.
Hardening is carried out by austenitising at approximately 925-1010 C, quenching in oil or air, and tempering. Tempering between 565 C and 650 C gives a balance of strength and toughness; tempering between 425 C and 565 C should be avoided because it reduces both toughness and corrosion resistance.
The route is either hot finishing, meaning rolling or forging with heat treatment and pickling, or cold finishing by drawing, peeling, turning or grinding. Size and finish class together decide the diameter, out of round, straightness and length tolerances.
Bar is normally supplied annealed (Condition A) for machining, with hardening and tempering performed after machining. Where bar is required in the hardened condition, the tempering temperature and target hardness should be agreed at order stage.
Physical property figures are typical producer data rather than standard requirements. Mechanical testing follows ASTM A370, and the certificate records analysis, test results, heat treatment and heat number.
Chemical Composition for Stainless Steel 410 Round Bar
Element
Symbol
Min
Max
Unit
Carbon
C
0.08
0.15
%
Manganese
Mn
-
1.00
%
Silicon
Si
-
1.00
%
Phosphorus
P
-
0.040
%
Sulfur
S
-
0.030
%
Chromium
Cr
11.50
13.50
%
Chemical Composition
View the chemical composition and applicable material limits for SS 410 Round Bar
Carbon, permitted to 0.15% maximum by ASTM A276 and specified as 0.08-0.15% by EN 1.4006, is what makes the steel hardenable, since it enables the formation of martensite on quenching. Chromium at 11.5-13.5% is the minimum needed for a passive film, and this is why corrosion resistance is modest compared with austenitic grades.
Chromium runs 11.50 to 13.50% here, and it is what makes the steel stainless: it builds the passive oxide film that resists attack. Beyond those, the standard controls only carbon, manganese, silicon, phosphorus, sulfur and chromium; nothing else is specified. Carbon is held between 0.08 and 0.15%.
Manganese and silicon are deoxidisers left over from melting and contribute modest solid solution strengthening. Phosphorus and sulphur are kept to low maxima, since both damage hot workability, weldability and corrosion resistance unless machinability is the priority.
The ASTM, EN, JIS, GB/T and KS versions are close but not identical. Compare the heat analysis on the mill certificate with the standard actually ordered before accepting the material for critical service. Chemical analysis is carried out to ASTM A751. Where the composition table shows no limit for an element, the standard sets no requirement and the element need not be determined or reported.
Mechanical Properties for Stainless Steel 410 Round Bar
Mechanical Property
Value
Unit
Tensile Strength (Condition A, annealed)
480 (min)
MPa
Yield Strength 0.2% (Condition A, annealed)
275 (min)
MPa
Elongation in 50 mm (Condition A, hot-finished)
20 (min)
%
Elongation in 50 mm (Condition A, cold-finished)
16 (min)
%
Reduction of Area (Condition A)
45 (min)
%
Tensile Strength (Condition T, tempered at high temperature)
690 (min)
MPa
Yield Strength 0.2% (Condition T)
550 (min)
MPa
Elongation in 50 mm (Condition T, hot-finished)
15 (min)
%
Reduction of Area (Condition T)
45 (min)
%
Hardness after hardening (ASTM A276-23 Table 3, air quench from 955 C)
35 (min)
HRC
Modulus of Elasticity
200 (typical)
GPa
Mechanical Properties
Check the key mechanical properties and performance requirements of SS 410 Round Bar
ASTM A276 specifies three conditions. Condition A, annealed, requires 480 MPa minimum tensile and 275 MPa minimum yield. Condition T, tempered at high temperature, requires 690 MPa and 550 MPa, and Condition H, tempered at low temperature, requires 830 MPa and 620 MPa with reduced elongation.
Properties depend on which condition is ordered. Bar comes annealed so it can be cut, and the service properties arrive with the later heat treatment. Testing is ASTM A370 for tensile and ASTM E10 or E18 for hardness; a heat treated order needs its target hardness or strength range stated.
Design to the minima of the ordered standard and condition; the certificate carries what the heat actually achieved. Bar diameter has an effect of its own, through cooling rate in heat treatment and the amount of working the section received.
Component selection is normally driven by the strength and hardness needed in service, with the tempering temperature chosen to balance them against toughness and corrosion resistance. Machining is carried out in the annealed condition, and allowance should be made for the small dimensional change that occurs during hardening. Where higher corrosion resistance is required at similar strength, a precipitation-hardening grade is usually the alternative considered.
Dimension / Sizes for Stainless Steel 410 Round Bar
Dimension / Size
Value
Unit
Diameter (standard supply range)
3 - 500 (larger by forging on request)
mm
Standard Length
3 - 6 (random mill length)
m
Custom Length
Cut to length available on request
-
Diameter Tolerance
Per ASTM A484 / A484M, varies with size and finish class
-
Length Tolerance
Per ASTM A484 / A484M or as agreed on the order
-
Straightness Tolerance
Per ASTM A484 / A484M or as agreed on the order
-
End Condition
Square cut, saw cut, chamfered or as ordered
-
Surface Finish
Hot-finished and pickled, cold-drawn, peeled, turned, ground or polished
-
Available Size Range (cold-finished bar)
3 - 100 (typical commercial capability)
mm
Available Size Range (hot-finished and forged bar)
16 - 500 (typical commercial capability)
mm
Cut-to-Length Availability
Available, tolerance to be agreed at order stage
-
Applicable Dimensional Standard
ASTM A484 / A484M
-
Dimensions & Sizes
Explore available diameters, lengths, and dimensional requirements for SS 410 Round Bar
Pricing for Stainless Steel 410 Round Bar
Round Bar Prices are generally quoted per kilograms or meters tonnes and can fluctuate with the global raw material and market prices. The final price will depend on a variety of factors, including the grade size, diameter, length, surface finish, the quantity and whether the bars are cut to length or in standard lengths.
For smaller quantities, we can also quote per metre or per piece basis once the required dimensions have been confirmed. Container-loads or orders that are larger in size are typically priced per tonne, based upon the specifications required and the supply conditions.
Please provide your desired dimensions, grades, length number, and end for a current quote including the lead time applicable and details for certification.
Pricing
Get current Stainless Steel 410 Round Bar pricing based on size, quantity, grade, finish, and delivery requirements.
Why Choose Us
Euro Steel Bars is an international distributor, stockist and exporter of stainless round steel bars that cover carbon, stainless alloy, special grades. We stock a variety of sizes and grades. We guarantee every order with mill test certificates as well as full quality-assurance documentation. Our name speaks to our roots: European-sourced materials that is backed by the certificates and rigor that buyers from Asia as well as the Gulf and Africa are looking for.
Each bar we deliver is accompanied by EN 10204 3.1 mill test certificates as well as complete documentation of quality, so what you receive corresponds to what’s written in the documents. We carry a selection of sizes and grades ready for transport, and cut length upon the request of customers, which results in quicker lead times, whether you’re ordering just a one-off spec or a complete project tonnage.
We operate an actual wholesale business that is that is supported with an internationally-operated supply chain therefore we are able to serve fabricators sourcing one grade the same way in the same way as an EPC contractor who is placing a large order. Our clients include manufacturers, fabricators EPC construction companies, engineers oil and gas projects as well as construction companies. we design our inventory as well as documentation to show what buyers need to bring projects forward.
Our customers trust us across Qatar, Oman, Bahrain, Kuwait, Jordan, Malaysia, Singapore, Thailand, Taiwan, Turkey, Italy and South Africa. If you’re looking to source an Gulf energy project, or a construction project within Southeast Asia, you get the same quality of certified material, the exact documentation, and the exact delivery procedure.
Frequently Asked Questions
What is Stainless Steel 410 Round Bar?
What standard does Stainless Steel 410 Round Bar comply with?
What are the equivalent grades of Stainless Steel 410 Round Bar?
What sizes and lengths are available in Stainless Steel 410 Round Bar?
What are the key mechanical properties of Stainless Steel 410 Round Bar?
What is the typical chemical composition of Stainless Steel 410 Round Bar?
Can Stainless Steel 410 Round Bar be supplied cut to length or with a specific surface finish?
Can 410 round bar be hardened by heat treatment?
