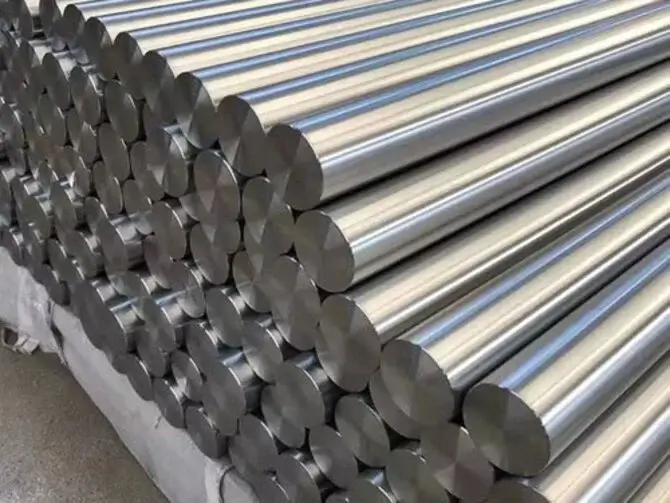

Hastelloy C-2000 Round Bar
➡️ Alloy C-2000 | UNS N06200 | EN 2.4675
➡️ ASTM, EN, JIS & International Standards
➡️ Supply Conditions
➡️ Multiple Diameters & Supply Lengths
➡️ Global Export & International Delivery
Country of Origin:
Europe, Japan, USA
Material Type:
Nickel Alloy
UNS Number:
N06200
Wr. No.:
2.4675
MTC Available:
EN 10204 3.1
Product Description for Hastelloy C-2000 Round Bar
Hastelloy C-2000 Round Bar is made from nickel-chromium-molybdenum-copper alloy UNS N06200, listed in Europe as 2.4675 (NiCr23Mo16Cu). C-2000 bar is ordered to ASTM B574 or ASME SB574 and delivered solution annealed.
Most Ni-Cr-Mo alloys are a trade-off. More chromium helps in oxidising acids such as nitric or ferric-bearing solutions, while more molybdenum helps in reducing acids such as hydrochloric or dilute sulfuric acid. C-2000 was designed in the 1990s to push both at once, with about 23% chromium and 16% molybdenum, and then add about 1.6% copper to lift performance in sulfuric and hydrofluoric acid.
This makes it useful where one piece of equipment must handle several processes. Multi-product reactors in fine chemical and pharmaceutical plants can switch between acid types, solvents and oxidisers. A single alloy that tolerates the whole range cuts the risk of failure when a new recipe is run.
C-2000 also has very high resistance to pitting, crevice corrosion and chloride stress corrosion cracking. Its low carbon and silicon allow welded parts to be used without post-weld heat treatment.
Bar is non-magnetic and supplied turned, peeled or ground, cut to length, with EN 10204 3.1 certification. It is used for agitator shafts, impellers, pump and valve parts, bolting, spray nozzles and fittings in chemical, pharmaceutical, agrochemical and acid handling plants.
C-2000 is also used where process streams switch between oxidising and reducing states, such as batch reactors that run different chemicals in turn. One alloy can then replace several, which simplifies spare-parts stock and welding procedures across a plant. Bar made to UNS N06200 can be sourced from more than one mill if the chemistry and tests meet ASTM B574.
Common Applications of Hastelloy C-2000 Round Bar
➡️ Machined shafts, spindles, valve stems, pump sleeves and pins for food, beverage, dairy and pharmaceutical equipment, where the passive chromium oxide film resists both product acids and caustic clean-in-place chemicals.
➡️ Fasteners, studs, bolts, threaded rod and anchor components produced from bar stock, chosen for corrosion resistance combined with the ductility needed for cold heading and thread rolling.
➡️ Chemical, water treatment and general process plant parts such as agitator shafts, flange blanks, nozzles and support components handling water, steam and mildly corrosive media free of significant chlorides.
➡️ Architectural and structural hardware including handrail stanchions, balustrade fittings, tension rods and bollards, where a bright ground or polished bar finish provides both appearance and low maintenance.
International Equivalent Grade for Alloy C-2000 Round Bar
Standard
Country / Region
Grade
ASTM B574
USA
UNS N06200
ASME SB574
USA
UNS N06200
DIN 17744 / VdTÜV
Europe
2.4675 (NiCr23Mo16Cu)
Technical Specification for Hastelloy C-2000 Round Bar
Specification
Value
Unit
Material
Nickel alloy
-
Grade
C-2000 / UNS N06200 / 2.4675
-
Standard
ASTM B574 / ASME SB574
-
Product Form
Round bar / rod
-
Diameter (supply range)
6–250
mm
Length (random)
1–6
m
Manufacturing Process
Hot rolled, forged, extruded or cold drawn
-
Surface Finish
Descaled, pickled, peeled, turned, ground or bright
-
Heat Treatment / Delivery Condition
Solution annealed
-
Tolerance Standard
Per ASTM B574 tolerance tables
-
Density
8.50
g/cm³
Melting Range
1328–1399
°C
Thermal Conductivity at 20°C
9.1
W/m·K
Coefficient of Thermal Expansion 20–100°C
12.4
µm/m·K
Specific Heat at 20°C
428
J/kg·K
Electrical Resistivity at 20°C
1.26
µΩ·m
Modulus of Elasticity at 20°C
206
GPa
Magnetic Properties
Non-magnetic
-
Testing / Inspection
Chemical analysis, tensile, hardness, dimensional, UT and PMI on request
-
Certification
EN 10204 3.1 mill test certificate (3.2 on request)
-
Technical Specifications
Get the key technical specifications for Hastelloy C-2000 Round Bar
ASTM B574 covers rod in UNS N06200, and ASME SB574 is used for code pressure parts. Allowable stresses for design are listed in ASME Section II-D.
The delivery condition is solution annealed, normally at about 1150°C, followed by rapid cooling. This keeps copper and molybdenum fully in solution and gives the best corrosion resistance. Fabricators who hot form parts should apply the same anneal afterwards.
Density is about 8.5 g/cm³. The physical values in the table, such as thermal conductivity, expansion and electrical resistivity, are producer reference data.
Standard testing covers heat chemistry, tension tests and dimensions. Because C-2000 is often chosen for demanding, variable service, buyers frequently add an ASTM G28 Method A intergranular corrosion test, PMI on each bar and ultrasonic testing for shafts. Some pharmaceutical users also specify surface roughness limits on ground bar for cleanability.
The same C-2000 bar can be certified to both ASTM B574 and ASME SB574 on one document. Cold-finished bar is supplied to close diameter limits for shafts, while hot-finished bar carries a machining allowance. Heavy sections are forged, then turned or peeled to size before shipment.
Chemical Composition for Hastelloy C-2000 Round Bar
Element
Symbol
Min
Max
Unit
Chromium
Cr
22.0
24.0
%
Molybdenum
Mo
15.0
17.0
%
Copper
Cu
1.3
1.9
%
Iron
Fe
-
3.0
%
Carbon
C
-
0.010
%
Cobalt
Co
-
2.0
%
Manganese
Mn
-
0.50
%
Silicon
Si
-
0.08
%
Aluminium
Al
-
0.50
%
Phosphorus
P
-
0.025
%
Sulfur
S
-
0.010
%
Nickel
Ni
Balance
-
%
Chemical Composition
View the chemical composition and applicable material limits for Alloy C-2000 Round Bar
The composition table shows ASTM B574 limits for UNS N06200. Chromium at 22.0–24.0% is higher than in C-276 and forms a strong protective oxide in oxidising acids and media containing ferric or cupric ions.
Molybdenum at 15.0–17.0% keeps resistance to reducing acids and to pitting and crevice attack. Holding molybdenum this high alongside 23% chromium is only possible because carbon and silicon are kept very low and the melt is carefully controlled, which avoids the formation of brittle phases.
Copper at 1.3–1.9% is the feature that sets C-2000 apart. In sulfuric acid, especially at mid concentrations and moderate temperatures, copper helps the surface form a more protective layer, lowering corrosion rates well below alloys without copper. It also helps in hydrofluoric acid.
Carbon at 0.010% maximum and silicon at 0.08% maximum protect weld zones. Iron is limited to 3.0% and cobalt to 2.0%. Aluminium, manganese, phosphorus and sulfur are controlled as minor elements.
The certificate should show copper within range, since this confirms the grade.
Carbon is held at 0.010% maximum and silicon at 0.08% maximum, which limits precipitation in the weld heat-affected zone.
Mechanical Properties for Hastelloy C-2000 Round Bar
Mechanical Property
Value
Unit
Tensile Strength (ASTM B574, annealed)
≥ 690
MPa
Yield Strength 0.2% (ASTM B574)
≥ 310
MPa
Elongation (ASTM B574)
≥ 45
%
Mechanical Properties
Check the key mechanical properties and performance requirements of Alloy C-2000 Round Bar
ASTM B574 requires solution annealed N06200 bar to reach at least 690 MPa tensile strength, 310 MPa yield strength and 45% elongation. The elongation minimum is higher than for most other C-family alloys, reflecting the ductility of the alloy.
This ductility helps in fabrication. C-2000 can be cold formed and swaged well, and it handles thread rolling for bolting. Cold work raises strength and hardness, and heavily worked parts may need a solution anneal if full corrosion resistance is required.
The alloy work hardens during machining. Use sharp carbide tools, positive rake, rigid setups and continuous cuts to avoid rubbing. Flood coolant helps control heat.
C-2000 is not used as a high-temperature structural alloy. For pressure design at elevated temperature, take allowable stresses from ASME Section II-D. Tensile results for each heat are reported on the EN 10204 3.1 certificate, and yield strength should be checked against the 310 MPa minimum.
C-2000 work-hardens during cold forming and machining. Heavy cold work raises strength but can lower corrosion resistance, so heavily formed parts may need a fresh solution anneal. ASME allows N06200 in code design up to about 425°C.
Dimension / Sizes for Hastelloy C-2000 Round Bar
Dimension / Size
Value
Unit
Available Diameter Range (supply capability)
6–250
mm
Standard Length (random)
1–6
m
Custom / Cut-to-Length
Available on request
-
Diameter Tolerance
Per ASTM B574 tolerance tables
-
Length Tolerance
Per ordered standard or as agreed (commonly +50 / -0 mm for cut lengths)
-
Straightness Tolerance
Per ASTM B574 or as agreed
-
End Condition
Saw cut square, chamfered or as ordered
-
Surface Finish
Hot finished, descaled, pickled, peeled, turned, centreless ground or cold drawn bright
-
Diameter Range Covered by Standard
7.94–88.9 (ASTM B574 scope, larger diameters supplied to agreed specification)
mm
Dimensions & Sizes
Explore available diameters, lengths, and dimensional requirements for Alloy C-2000 Round Bar
Pricing for Hastelloy C-2000 Round Bar
Round Bar Prices are generally quoted per kilograms or meters tonnes and can fluctuate with the global raw material and market prices. The final price will depend on a variety of factors, including the grade size, diameter, length, surface finish, the quantity and whether the bars are cut to length or in standard lengths.
For smaller quantities, we can also quote per metre or per piece basis once the required dimensions have been confirmed. Container-loads or orders that are larger in size are typically priced per tonne, based upon the specifications required and the supply conditions.
Please provide your desired dimensions, grades, length number, and end for a current quote including the lead time applicable and details for certification.
Pricing
Get current Hastelloy C-2000 Round Bar pricing based on size, quantity, grade, finish, and delivery requirements.
Why Choose Us
Euro Steel Bars is an international distributor, stockist and exporter of stainless round steel bars that cover carbon, stainless alloy, special grades. We stock a variety of sizes and grades. We guarantee every order with mill test certificates as well as full quality-assurance documentation. Our name speaks to our roots: European-sourced materials that is backed by the certificates and rigor that buyers from Asia as well as the Gulf and Africa are looking for.
Each bar we deliver is accompanied by EN 10204 3.1 mill test certificates as well as complete documentation of quality, so what you receive corresponds to what’s written in the documents. We carry a selection of sizes and grades ready for transport, and cut length upon the request of customers, which results in quicker lead times, whether you’re ordering just a one-off spec or a complete project tonnage.
We operate an actual wholesale business that is that is supported with an internationally-operated supply chain therefore we are able to serve fabricators sourcing one grade the same way in the same way as an EPC contractor who is placing a large order. Our clients include manufacturers, fabricators EPC construction companies, engineers oil and gas projects as well as construction companies. we design our inventory as well as documentation to show what buyers need to bring projects forward.
Our customers trust us across Qatar, Oman, Bahrain, Kuwait, Jordan, Malaysia, Singapore, Thailand, Taiwan, Turkey, Italy and South Africa. If you’re looking to source an Gulf energy project, or a construction project within Southeast Asia, you get the same quality of certified material, the exact documentation, and the exact delivery procedure.
