Stainless Steel 416 Round Bar
➡️ SS 416 | UNS S41600 | EN 1.4005
➡️ ASTM, EN, JIS & International Standards
➡️ Supply Conditions
➡️ Multiple Diameters & Supply Lengths
➡️ Global Export & International Delivery
Country of Origin:
Europe, Japan, USA
Material Type:
Stainless Steel
UNS Number:
S41600
Wr. No.:
1.4005
MTC Available:
EN 10204 3.1

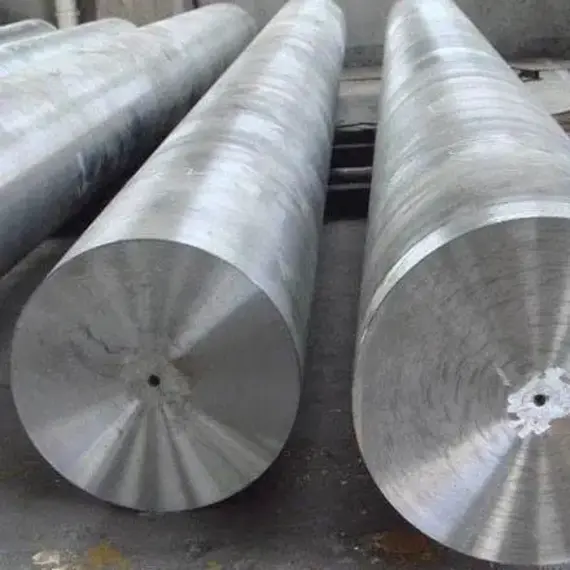

Product Description for Stainless Steel 416 Round Bar
Stainless Steel 416 Round Bar is a solid cylindrical bar produced from free-machining martensitic stainless steel Type 416 (UNS S41600). The grade is a free-cutting version of Type 410 with a minimum sulphur addition of 0.15%. Bars are supplied principally to ASTM A582 / A582M, with dimensional and surface requirements from ASTM A484 / A484M.
The grade contains 12.00-14.00% chromium with a maximum of 0.15% carbon. Because it is martensitic, it can be hardened by quenching and tempering, unlike the austenitic free-machining grade 303. In the annealed condition it machines at roughly 85% of the rate of free-cutting carbon steel, the highest machinability of any stainless steel, which makes it the standard choice for parts produced in large volumes on automatic and CNC lathes.
Bars are supplied annealed, or hardened and tempered to a specified strength or hardness range, in hot-finished, cold-drawn, turned or ground finishes. Typical stock diameters run from about 5 mm to 200 mm in 3 to 6 m lengths. Corrosion resistance is modest, limited to mild atmospheric, fresh water, steam and light chemical exposure, and the sulphide inclusions make the grade unsuitable for chloride service or for welding.
Common applications include valve stems and trim, pump shafts, motor and gear shafts, studs, nuts and bolts, gear blanks, automatic screw machine parts, washing machine components, electrical hardware and firearms parts. Industries served include general engineering, pumps and valves, automotive, appliance manufacturing, electrical equipment and oilfield surface hardware. The grade is ferromagnetic in all conditions, which suits it to solenoid and magnetic-circuit components.
Common Applications of Stainless Steel 416 Round Bar
➡️ Machined shafts, spindles, valve stems, pump sleeves and pins for food, beverage, dairy and pharmaceutical equipment, where the passive chromium oxide film resists both product acids and caustic clean-in-place chemicals.
➡️ Fasteners, studs, bolts, threaded rod and anchor components produced from bar stock, chosen for corrosion resistance combined with the ductility needed for cold heading and thread rolling.
➡️ Chemical, water treatment and general process plant parts such as agitator shafts, flange blanks, nozzles and support components handling water, steam and mildly corrosive media free of significant chlorides.
➡️ Architectural and structural hardware including handrail stanchions, balustrade fittings, tension rods and bollards, where a bright ground or polished bar finish provides both appearance and low maintenance.
International Equivalent Grade for SS 416 Round Bar
Standard
Country / Region
Grade
ASTM A582 / A582M
USA
Type 416 (UNS S41600)
ASTM A484 / A484M
USA
Type 416 - dimensional requirements
EN 10088-3
Europe / EU
1.4005 (X12CrS13)
BS EN 10088-3
United Kingdom
1.4005 (X12CrS13)
BS 970 Part 1 (superseded)
United Kingdom
416S21
JIS G4303
Japan
SUS416
GB/T 1220
China
Y12Cr13 (S41617)
KS D 3706
South Korea
STS416
ISO 15510
International
X12CrS13
Technical Specification for Stainless Steel 416 Round Bar
Specification
Value
Unit
Material
Stainless steel
-
Grade
416 / UNS S41600 / 1.4005
-
Product Form
Round bar / rod
-
Standard
ASTM A582 / A582M
-
Diameter
5 - 200 (available range)
mm
Length
3 - 6 (standard random or fixed)
m
Manufacturing Process
Hot rolled, forged or cold drawn
-
Production Route
EAF / AOD melting, ingot or continuous cast, hot rolling, annealing, cold finishing
-
Surface Finish
Hot-finished, cold-drawn, peeled, turned, ground, polished
-
Heat Treatment / Delivery Condition
Annealed, or hardened and tempered (Condition T) as ordered
-
Annealing Temperature
815 - 900 followed by slow cooling (typical)
deg C
Hardening Temperature
925 - 1010 followed by oil or air quench (typical)
deg C
Tempering Temperature
200 - 370 or 590 - 705, avoiding 400 - 580 (typical)
deg C
Tolerance Standard
ASTM A484 / A484M
-
Carbon Equivalent (CEV)
Not normally specified for martensitic stainless steel
-
Density
7.70 (typical)
g/cm3
Melting Range
1480 - 1530 (typical)
deg C
Thermal Conductivity
24.9 at 100 deg C (typical)
W/m.K
Coefficient of Thermal Expansion
9.9 at 0 - 100 deg C (typical)
micro-m/m.K
Specific Heat
460 at 0 - 100 deg C (typical)
J/kg.K
Electrical Resistivity
0.57 (typical)
micro-ohm.m
Modulus of Elasticity
200 (typical)
GPa
Magnetic Properties
Ferromagnetic in both annealed and hardened conditions
-
Applicable Testing Standard
ASTM A370, ASTM E8 / E8M, ASTM E10, ASTM E18, ASTM E415
-
Certification / Inspection Documents
EN 10204 Type 3.1 or 3.2 mill test certificate
-
Technical Specifications
Get the key technical specifications for Stainless Steel 416 Round Bar
Stainless Steel 416 Round Bar is ordered principally to ASTM A582 / A582M, which covers free-machining stainless bars and controls the material through composition and hardness limits. For the annealed cold-finished condition the maximum hardness is 262 HBW. ASTM A582 does not mandate a full set of tensile minima for every condition, so tensile and yield values are generally reported as typical unless the purchaser specifically requires tensile testing.
Because the grade is martensitic it responds to heat treatment. Annealing at about 815-900 deg C with slow cooling gives the softest, most machinable condition. Hardening is performed from 925-1010 deg C with an oil or air quench, followed by tempering. Tempering between roughly 400 and 580 deg C should be avoided because it produces temper embrittlement and a marked loss of impact toughness.
Dimensional tolerance, straightness and surface condition follow ASTM A484 / A484M. Cold-drawn and ground bars hold tighter diameter tolerances and give better surface roughness than hot-finished bars.
Inspection normally includes chemical analysis to ASTM E415, hardness testing to ASTM E10 or E18, and tensile testing to ASTM A370 where required. Ultrasonic testing, magnetic particle inspection and positive material identification may be specified. Bars are supplied with an EN 10204 Type 3.1 certificate as standard.
Chemical Composition for Stainless Steel 416 Round Bar
Element
Symbol
Min
Max
Unit
Carbon
C
-
0.15
%
Manganese
Mn
-
1.25
%
Silicon
Si
-
1.00
%
Phosphorus
P
-
0.060
%
Sulfur
S
0.15
-
%
Chromium
Cr
12.00
14.00
%
Molybdenum
Mo
-
0.60 (optional addition)
%
Iron
Fe
Balance
Balance
%
Chemical Composition
View the chemical composition and applicable material limits for SS 416 Round Bar
Chromium at 12.00-14.00% is the minimum level needed to form a passive oxide film and give the alloy stainless behaviour. At this level the corrosion resistance is modest, adequate for mild atmospheric exposure, fresh water, steam and light chemical service, but well below that of the austenitic 300 series.
Carbon at up to 0.15% is what makes the grade hardenable. On quenching from the austenitising range the carbon is trapped in solution and forms hard martensite, so heat treatment can raise strength and hardness well above the annealed level. The same carbon combines with chromium as carbides, locally depleting chromium and further limiting corrosion resistance.
Sulphur at 0.15% minimum defines the free-machining character. It forms manganese sulphide inclusions that fracture the chip and reduce cutting forces, giving the best machinability of any stainless steel. Those same inclusions act as pit initiation sites and as crack starters. That rules the grade out for welding and for chloride environments. Phosphorus is allowed up to 0.060%, higher than in Type 410, for the same machinability reason.
Manganese up to 1.25% ties the sulphur into manganese sulphide rather than iron sulphide, avoiding hot shortness. Silicon acts as a deoxidiser. An optional molybdenum addition up to 0.60% slightly improves corrosion resistance.
Mechanical Properties for Stainless Steel 416 Round Bar
Mechanical Property
Value
Unit
Hardness
262 max (annealed, per ASTM A582)
HBW
Tensile Strength
515 - 585 (typical, annealed)
MPa
Yield Strength 0.2% Proof
275 (typical minimum, annealed)
MPa
Elongation in 50 mm
20 (typical minimum, annealed)
%
Reduction of Area
45 (typical minimum, annealed)
%
Tensile Strength
760 - 930 (typical, hardened and tempered Condition T)
MPa
Yield Strength 0.2% Proof
585 - 690 (typical, hardened and tempered Condition T)
MPa
Elongation in 50 mm
15 (typical, hardened and tempered)
%
Hardness
248 - 302 (typical, hardened and tempered Condition T)
HBW
Modulus of Elasticity
200
GPa
Mechanical Properties
Check the key mechanical properties and performance requirements of SS 416 Round Bar
ASTM A582 / A582M controls Stainless Steel 416 Round Bar primarily by hardness, with 262 HBW maximum for annealed cold-finished bar and a specified hardness range for the hardened and tempered Condition T. Tensile and yield values are therefore given as typical rather than mandatory unless tensile testing is requested at the time of order, in which case testing follows ASTM A370 and ASTM E8 / E8M.
The properties depend strongly on the delivery condition. In the annealed state the bar is soft, ductile and easily machined. After hardening from 925-1010 deg C and tempering, tensile strength and hardness rise well above the annealed values while elongation falls. Low-temperature tempering near 200-370 deg C gives the highest strength and hardness, while tempering at 590-705 deg C gives lower strength with better ductility and improved corrosion resistance.
Tempering in the 400-580 deg C band must be avoided. It produces temper embrittlement and a sharp reduction in impact energy, and it also reduces corrosion resistance.
Impact toughness and transverse ductility are lower than Type 410 because of the sulphide stringers, and fatigue strength is likewise reduced. For rotating shafts and stems, the machined surface finish and the presence of stress raisers have a significant influence and should be controlled.
Dimension / Sizes for Stainless Steel 416 Round Bar
Dimension / Size
Value
Unit
Diameter (available range)
5 - 200
mm
Standard Length
3 - 6
m
Custom Length
Cut to length on request
-
Diameter Tolerance
Per ASTM A484 / A484M, class depends on size and finish
-
Diameter Tolerance (cold-finished)
h9 / h10 / h11 or as agreed
-
Length Tolerance
Per ASTM A484 / A484M or as agreed
-
Straightness Tolerance
Per ASTM A484 / A484M or as agreed
-
End Condition
Square cut, saw cut, chamfered or as ordered
-
Surface Finish
Hot-finished, cold-drawn, peeled, turned, ground, polished
-
Cut-to-Length Availability
Available
-
Dimensional Standard
ASTM A484 / A484M
-
Dimensions & Sizes
Explore available diameters, lengths, and dimensional requirements for SS 416 Round Bar
Pricing for Stainless Steel 416 Round Bar
Round Bar Prices are generally quoted per kilograms or meters tonnes and can fluctuate with the global raw material and market prices. The final price will depend on a variety of factors, including the grade size, diameter, length, surface finish, the quantity and whether the bars are cut to length or in standard lengths.
For smaller quantities, we can also quote per metre or per piece basis once the required dimensions have been confirmed. Container-loads or orders that are larger in size are typically priced per tonne, based upon the specifications required and the supply conditions.
Please provide your desired dimensions, grades, length number, and end for a current quote including the lead time applicable and details for certification.
Pricing
Get current Stainless Steel 416 Round Bar pricing based on size, quantity, grade, finish, and delivery requirements.
Why Choose Us
Euro Steel Bars is an international distributor, stockist and exporter of stainless round steel bars that cover carbon, stainless alloy, special grades. We stock a variety of sizes and grades. We guarantee every order with mill test certificates as well as full quality-assurance documentation. Our name speaks to our roots: European-sourced materials that is backed by the certificates and rigor that buyers from Asia as well as the Gulf and Africa are looking for.
Each bar we deliver is accompanied by EN 10204 3.1 mill test certificates as well as complete documentation of quality, so what you receive corresponds to what’s written in the documents. We carry a selection of sizes and grades ready for transport, and cut length upon the request of customers, which results in quicker lead times, whether you’re ordering just a one-off spec or a complete project tonnage.
We operate an actual wholesale business that is that is supported with an internationally-operated supply chain therefore we are able to serve fabricators sourcing one grade the same way in the same way as an EPC contractor who is placing a large order. Our clients include manufacturers, fabricators EPC construction companies, engineers oil and gas projects as well as construction companies. we design our inventory as well as documentation to show what buyers need to bring projects forward.
Our customers trust us across Qatar, Oman, Bahrain, Kuwait, Jordan, Malaysia, Singapore, Thailand, Taiwan, Turkey, Italy and South Africa. If you’re looking to source an Gulf energy project, or a construction project within Southeast Asia, you get the same quality of certified material, the exact documentation, and the exact delivery procedure.
Frequently Asked Questions
What is Stainless Steel 416 Round Bar?
What standard does Stainless Steel 416 Round Bar comply with?
What are the equivalent grades of Stainless Steel 416 Round Bar?
Can Stainless Steel 416 be hardened by heat treatment?
Can Stainless Steel 416 Round Bar be welded?
How corrosion resistant is Type 416?
What sizes and lengths are available?
Is Stainless Steel 416 magnetic?
